SQ-1G > 음향 시스템

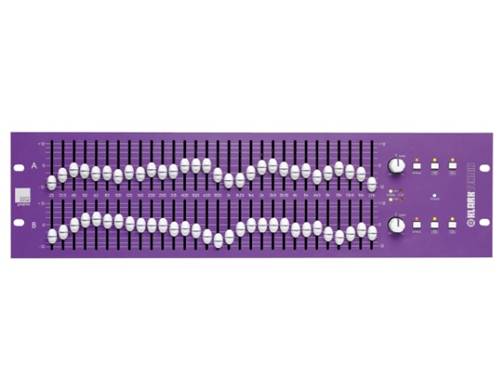

제품명	GRAPHIC EQUALIZER
모델명	SQ-1G

제품설명

Input : Two
- Type : Electronically balanced (pin 2 hot)
- Impedance(ohms) : Balanced : 20k
Output : Two
- Type : Unbalanced (pin 2 hot)
- Min. load impedance : 600 (ohms)
- Source impedance : <60 (ohms)
- Max. level : +22dBu into >2K ohms
Performance
  - Frequency response(20Hz-20kHz) Eq out : +/- 0.5dB / Eq in : +/- 0.5dB
- Noise Floor : <-90dBu
- Overload indicator : +19dBu
- Gain -infinity to : +6dB
Power Requirements
- Voltage : 110-240V 50/60Hz
- Consumption : <25W
Weight - Nett : 4.4kg / Shipping : 5.4kg
Dimensions - W : 482mm (19 inch) - D : 205mm (8 inch) - H : 133mm
