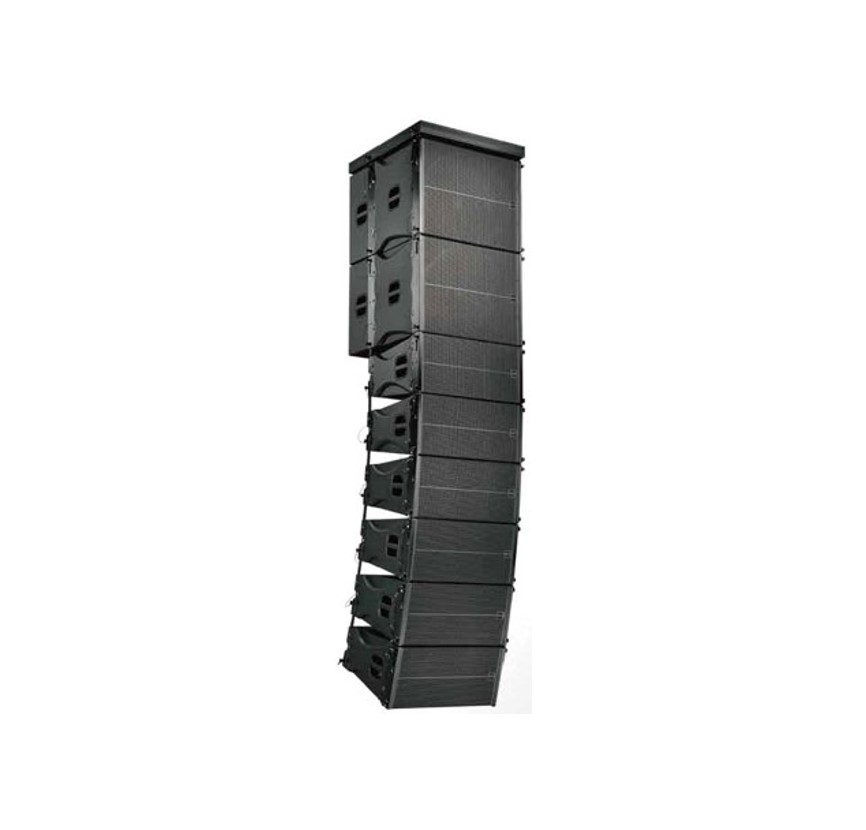

| 제품명 | Dual 6” Active Line Array Speaker |
| 모델명 | LP-062-P, LP-151S-P |
▶ Double 6 inch line array, small but powerful, can be passive and active.
▶ Highlight the human voice, enrich the music sound, high frequency clear and optimized.
▶ High output sound pressure, wide and delicate sound range.
▶ Horn with constant directivity can maximize accurate sound coverage angle, smooth
frequency response.
▶ Convenient to use with handles and easy to install.
▶ 15mm birch plywood cabinet with environmental paint.
|
Type |
Double 6” active line array speaker |
|
Unit composition |
LF: 2x6” |
|
HF: 1x1.75" |
|
|
Frequency Response |
70Hz ~ 18KHz |
|
Amplifier Design |
CLASS D with FIR and DSP |
|
Power Rating |
300W |
|
Amplifier Power |
500W+100W/8Ω |
|
SPL |
124dB |
|
Coverage Angle |
110˚(H) x 15˚(V) |
|
Connector |
2 x Speakon NL4MP |
|
Size(HxWxD) |
204 x 515 x 298mm |
|
Weight(Kg) |
17.4Kg |
|
Type |
Single 15” Active subwoofer |
|
Unit composition |
LF: 1x15” |
|
Frequency Response |
50Hz ~ 180Hz |
|
Amplifier Design |
CLASS D with FIR and DSP |
|
Power Rating |
500W |
|
Amplifier Power |
1000W/8Ω |
|
SPL |
126dB |
|
Coverage Angle |
- |
|
Connector |
2 x Speakon NL4MP |
|
Size(HxWxD) |
437 x 519 x 538mm |
|
Weight(Kg) |
42.4Kg |
