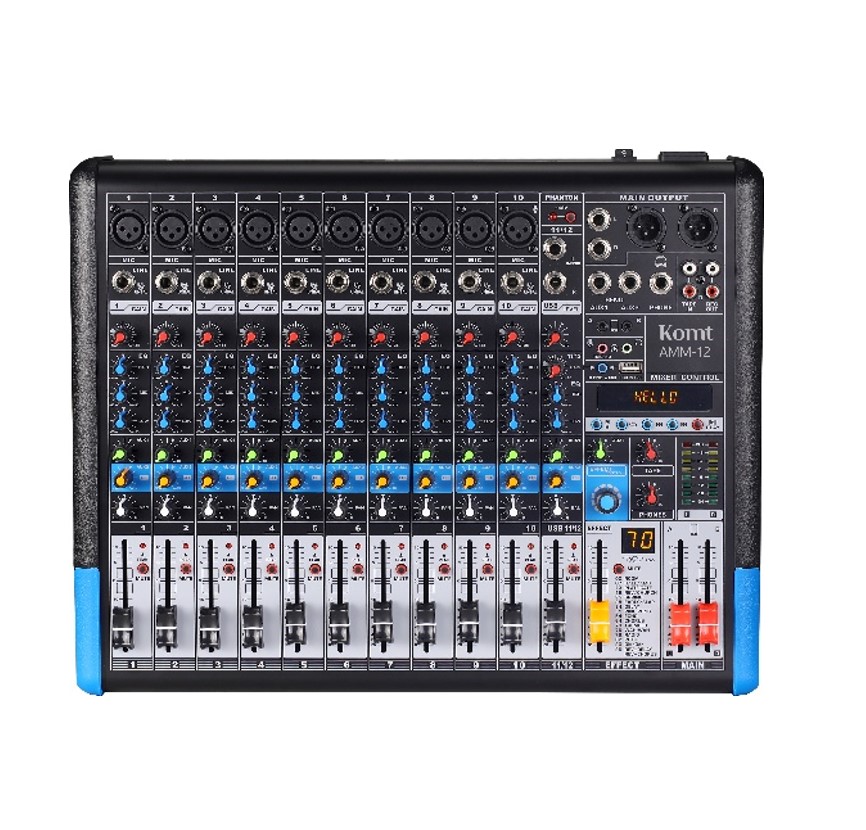

제품명 12ch Analog Audio Mixer
모델명 AMM-12
제품설명

10 XLR balanced mono channel inputs + 1 stereo input channel

EACH CHANNEL WITH 3-STAGE EQUALIZATION ADJUSTMENT, 60MM SMOOTH FADER ATTENUATOR

1 stereo bus, 2 AUX bus outputs (including FX)

Built-in 48V phantom power supply

16 DSP digital effects,

USB audio playback MP3, Bluetooth playback

USB recording

The LED display clears the playback status

Eight-segment three-color precision level light display

The two-tone side panel design is sleek, innovative and unique

XLR balanced input preamp noise is extremely low, ultra-low noise line design, and large headroom

Suitable for global supply voltage, power 30 watts, flexible use. It has the characteristics of no noise and low power consumption

PRODUCT SIZE: 430x340x90 MM



INPUT Channels

10 XLR + 1 ST

OUTPUT Channels

1 ST bus, 2 Aux, 1 monitor

Impedance

MIC : 3KΩ, LINE : 10KΩ

Adjust channel GAIN

to -50dB

Frequency Response

20Hz ~ 20KHz, 0.5dB@1KHz

Channel crosstalk

<-75dB @ 1KHz

Signal-to-noise

83dB @ 1KHz

Distortion

0.1% @ 0dB 1KHz

Power supply

100V~240V / 50Hz

Power consumption

30W

Dimensions

430 x 340 x 90mm
