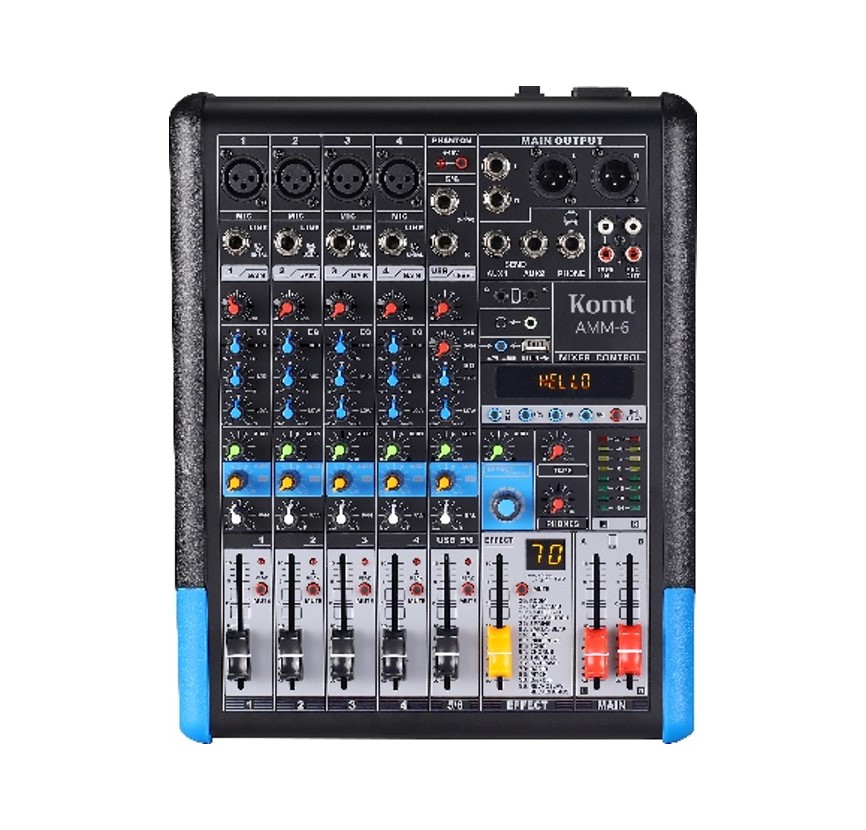

| 제품명 | 6ch Analog Audio Mixer |
| 모델명 | AMM-6 |
▶ 4 XLR balanced mono channel input + 1 stereo input channel
▶ 3-stage equalization adjustment per channel, METE silent switch, 60MM smooth fader attenuator
▶ 1 stereo bus, 2 AUX bus outputs (including FX), 1 monitor
▶ Built-in +48V phantom power supply
▶ 99 DSP digital effects
▶ USB audio plays MP3
▶ USB direct recording
▶ Built-in Bluetooth to receive playback
▶ LED display clears to show playback status
▶ Eight-segment three-color precision level lamp display signal
▶ Two-color side panel design is fashionable, novel and unique
▶ Suitable for global power supply voltage: 30 watts, flexible use. It has the characteristics of no noise and low power consumption
▶ Product size: 270x340x95 MM Net weight: 2.5KG
|
INPUT Channels |
4 XLR + 1 ST |
|
OUTPUT Channels |
1 ST bus, 2 Aux, 1 monitor |
|
Impedance |
MIC : 3KΩ, LINE : 10KΩ |
|
Adjust channel GAIN |
to -50dB |
|
Frequency Response |
20Hz ~ 20KHz, 0.5dB@1KHz |
|
Channel crosstalk |
<-75dB @ 1KHz |
|
Signal-to-noise |
83dB @ 1KHz |
|
Distortion |
0.1% @ 0dB 1KHz |
|
Power supply |
100V~240V / 50Hz |
|
Power consumption |
30W |
|
Dimensions |
270 x 340 x 95mm |
|
Weight |
2.5kg |
