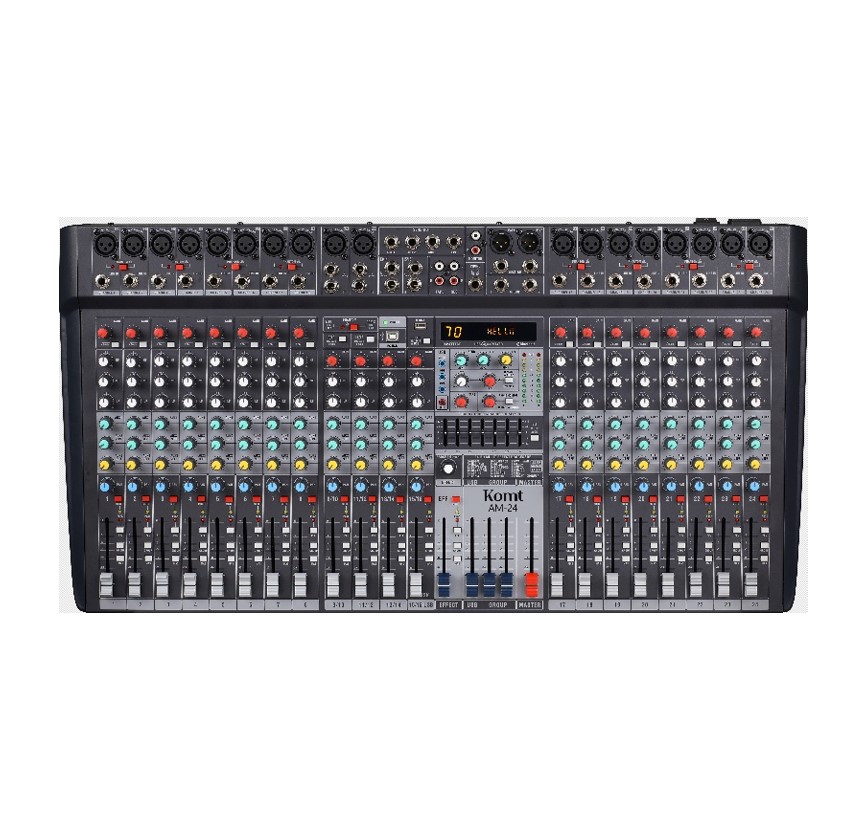

제품명 | 24ch Analog Audio Mixer |
모델명 | AM-24 |
▶ 18 XLR balanced mono channel inputs+2 stereo input channels
▶ 2 sets of outputs+3 sets of AUX bus auxiliary outputs (including EFF), 1 set of monitoring outputs
▶ LPF low-pass filter output from stereo or AUX2 (60-150HZ adjustable)
▶ Lotus TAPE/REC external recording interface+MONITOR room output interface
▶ Built in 99 DSP digital effectors
▶
Dual USB interface design, USB audio playback MP3, USB recording, USB sound
card, can be connected to a computer for recording and
playback.
▶ Built-in wireless Bluetooth 5.0 for receiving playback
▶ Stereo 7-band graphic equalizer output
▶ Built-in+4SV phantom power supply, independent 2-circuit group switch output power supply
▶ Each channel has 3 segments of parameter equalization, 80Hz. 2.5KHZ. 12KHz,
▶ Equipped with MUTE mute switch for each input channel, PFL monitoring headphone switch, smooth 60MM stroke pusher
▶ Can be equipped with a 19 inch cabinet on a bracket
▶ 24-way: Machine size 728 x 385 x 100mm
INPUT Channels |
18 XLR + 2ST |
OUTPUT Channels |
2 Sets + 3 Aux |
Impedance |
MIC : 3KΩ, LINE : 10KΩ |
Adjust channel GAIN |
to -50dB |
Frequency Response |
20Hz ~ 20KHz, 0.5dB@1KHz |
Channel crosstalk |
<-75dB @ 1KHz |
Signal-to-noise |
83dB @ 1KHz |
Distortion |
0.1% @ 0dB 1KHz |
Power supply |
100V~240V / 50Hz |
Power consumption |
30W |
Dimensions |
728 x 385 x 100mm |
