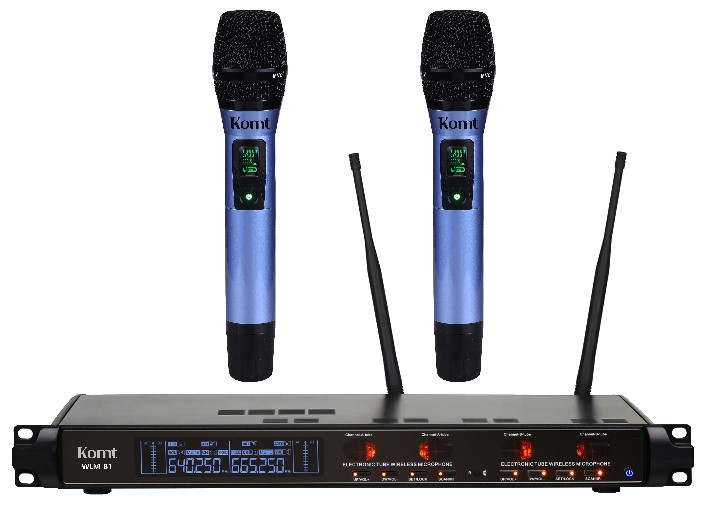

| 제품명 | Wireless microphone system |
| 모델명 | WLM-B1 |
▶ With one-key automatic frequency search function, one-key lock button function
▶ Pure copper large ring cow power supply is more stable and safer
▶ 200 groups of selectable frequency points, can be used by 100 units at the same time, universal hand, strong anti-interference ability
▶ Using antenna diversity reception technology, the signal is more stable
▶ The audio is processed by new
tube technology, so that the low frequency is full, the midrange is
prominent, and the high frequency
is delicate and clear
▶ The receiver display shows the battery level of the transmitter
▶ Microphone body sensing, automatic mute, intelligent wake-up, energy saving and power saving
▶ Suitable for entertainment KTV, multi-function hall, home theater, small and medium-sized performance occasions
|
Receiver parameter |
|
|
Receiving frequency |
UHF640-690MHz |
|
Frequency stability |
±0.002%. |
|
Sensitivity |
10uV |
|
Image interference ratio |
>80dB |
|
Signal-to-noise ratio |
>90dB |
|
Expansion ratio |
1..2 |
|
Audio output |
0~300mV |
|
Receiving channel |
2 channels |
|
Mixing output interface |
6.35MM unbalanced mixing port |
|
Separate outputs |
Two balanced outputs |
|
Power supply voltage |
AC 220V (50Hz) |
|
Power consumption |
6W |
|
Receiving Antenna |
External BNC antenna |
|
Kinetic energy range |
>100dB |
|
Comprehensive distortion |
<</b0> |
|
Working temperature |
-10°C~50°C |
|
Audio amplification |
Tube amplification processing |
|
Wireless handheld microphone parameters |
|
|
Transmit frequency |
UHF640-690MHz |
|
Frequency stability |
±0.002%. |
|
Transmit power |
10mW/30mW two gears |
|
Current consumption |
<120mA@</b3> |
|
Adjacent frequency rejection |
>60dBm |
|
Standard |
FM |
|
Modulation offset |
±45KHz |
|
Compression ratio |
2..1 |
|
Pickup |
supercardioid dynamic type |
|
Battery |
Two No. 5 1.5V alkaline batteries |
|
Antenna |
Built-in loop antenna |
|
Frequency response |
30Hz~16KHz@±3dB |
|
Effective use distance |
> 100 meters |
